Fingerprint & RFID Access Reader

Description

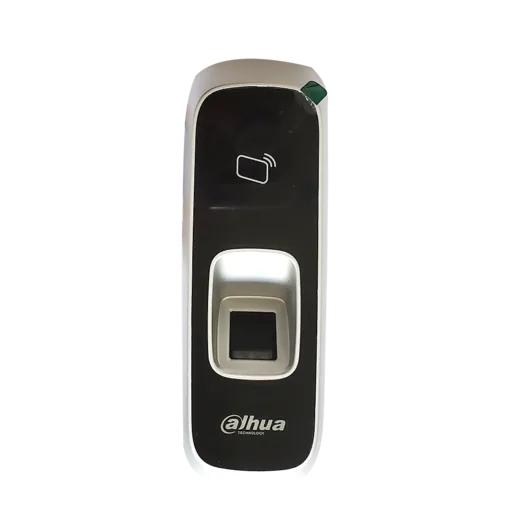

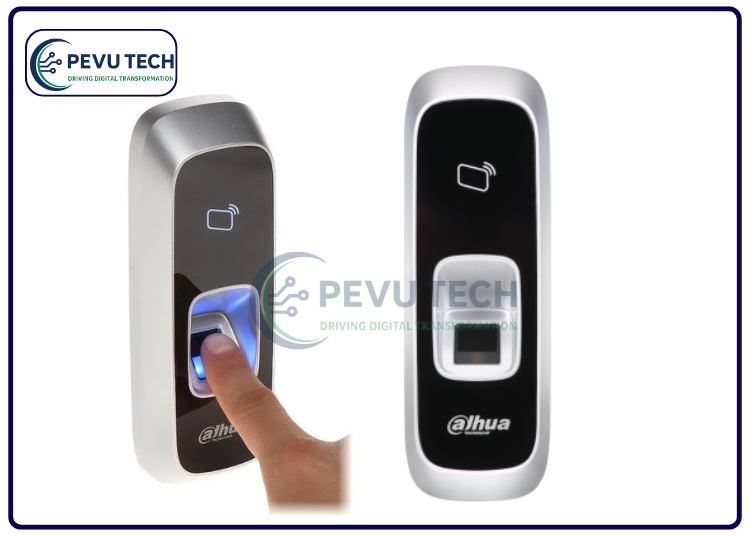

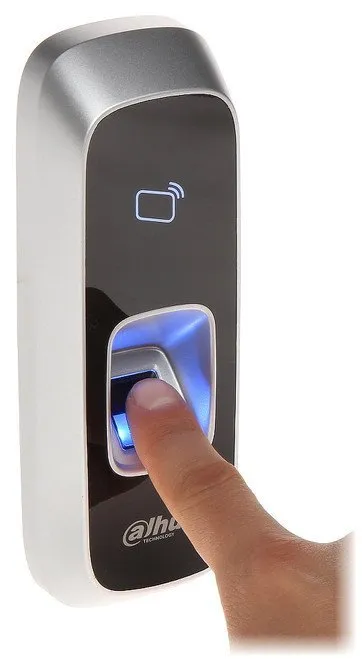

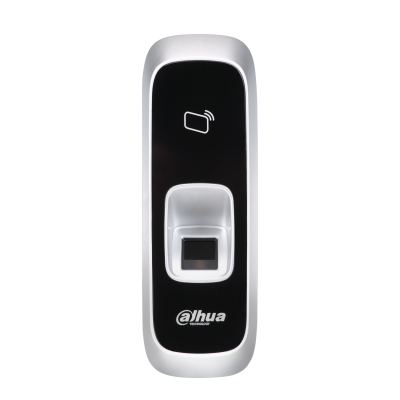

The Dahua ASR1102A (V2) is a high-performance biometric & RFID access reader, designed for secure access control in offices, commercial buildings and other installations.
Key features:

• Supports fingerprint recognition and card access (13.56 MHz Mifare or 125 kHz ID/EM cards) depending on variant (“-D” means ID EM card support).

• Capacity for up to 3,000 fingerprints.

• Supports RS-485 communication protocol for integration with access control systems.

• Blue back-light display, tamper alarm, built-in watch-dog to ensure the reader remains operational.

• Power supply: 9-15 V DC; Operating environment: −10 °C to +55 °C; Working humidity 5%–95%.

• Dimensions: 165 mm × 57 mm × 29 mm approx.; Weight: ~0.25 kg.
  This reader is ideal for installations where both biometric and card access are required with reliable integration into access-control systems.
